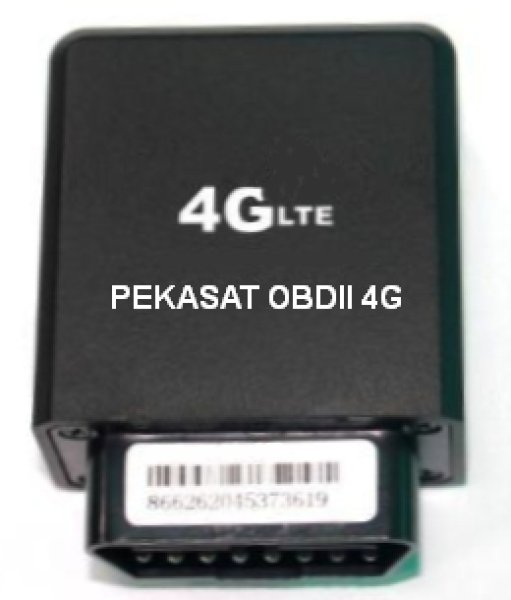

PEKASAT OBD II 4G LTE/GSM/GPS/GPRS Trackingsystem
Extremely small tracking system with great performance. Ideal for use in vehicles with OBD interface (diagnostic socket).
Quick assembly / disassembly by plug & play installation by plugging the tracking system to the OBD socket of the vehicle.

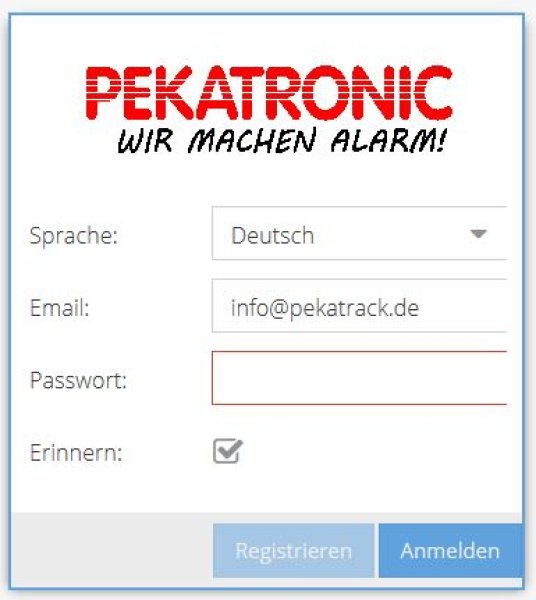

* This tracking works on our PEKATRONIC web portal. Ideal for monitoring multiple vehicles at a glance!
* Browser access to the web portal via PC, notebook, tablet or free smartphone apps.
* Data traffic only 150 to 200 MB / month.
1. plug & play version with OBD-II connector
2. verify the address of the vehicle
3. track the vehicle in the web portal and get information about speed and driving direction
4. check the location directly through web portal map
5. voltage range: 9V-35VDC, suitable for cars or large trucks
6. Real-time data of the vehicle:
- Battery voltage
- Speed
- GEO fence monitoring
- Battery monitoring
- Vibration alarm
- Motion alarm
- Power supply monitoring
- Internal high sensitive GSM and GPS antennas
- Sleep mode (automatic power saving mode)
- Power consumption in sleep mode only 15 mA
- Built-in 8MB Flash memory
- Brand new Swiss GPS chip technology from UBlox (Switzerland) -162dBm sensitivity
- Backup battery: Lithium-ion battery 180mAh
- SIM card slot protected in the device
Size: 75 x 27 x 14 mm
No card contract necessary! Prepaid card with disengageable PIN code is enough!
SCOPE OF DELIVERY:
Pekasat OBD II 4G tracking system
IMPORTANT NOTICE:
For the operation of the tracking system Pekasat OBD II 4G LTE prepaid cards (with data up to 300MB = 0.3 GB) are perfectly sufficient!
